Solid rubber junction boxes series 7800 / 7900 made from vulcanized butyl rubber are perfectly assembled according to your requirements and requests. With Schuko and CEE socket or different plug-in systems as telephone socket and antenna socket, cable glands, standard rails, clamps, switches, push buttons, etc.
Our production team will easily install even mounting parts provided by customer.
|
|
| Technical data |
|

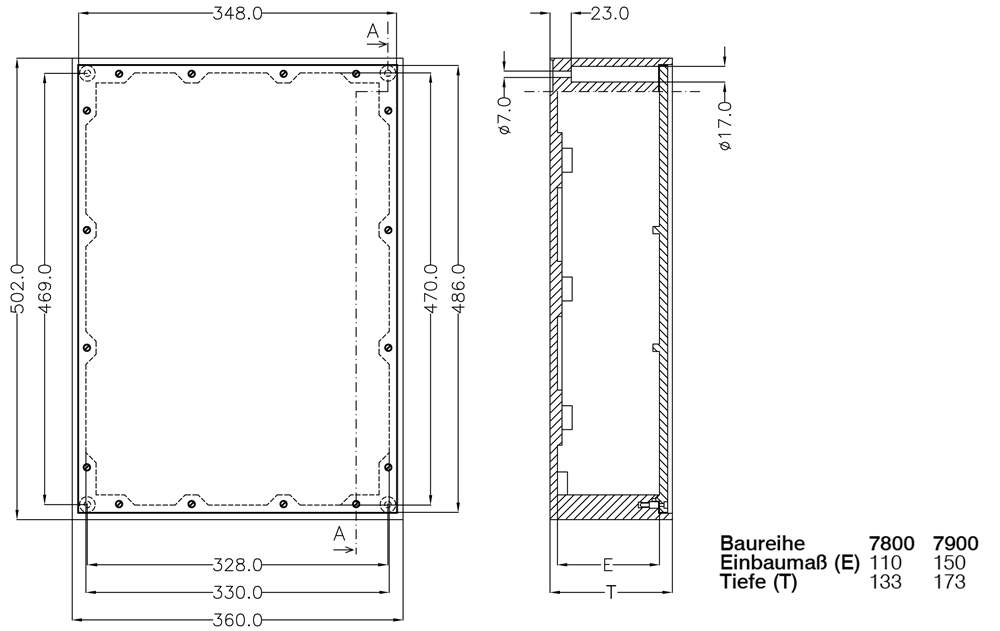

Width x height x depth:
|
Series 7800: 360 x 500 x 133 mm
Series 7900: 360 x 500 x 173 mm |
| Type of protection: |
IP44 (up to IP65 possible) |
| Housing Material: |
Solid rubber (vulcanised butyl rubber) |
Specifications of the housing:
|
Halogen-free, UV-resistant, resistant to oils
and various acids and alkalis |
| Gasket: |
Foamed polyurethane gasket |
| Cover fixing: |
Stainless steel screw TORX T15 A4 |
Protective insulation:
|
4-way wall mounting outside the wiring
space partitioned off |
Design the optimum solution for your requirements with our engineers.
