Main switch box with built-in work sockets,
incorporated into a solid rubber box of the series 7900.
|
|
| Technical data |
|

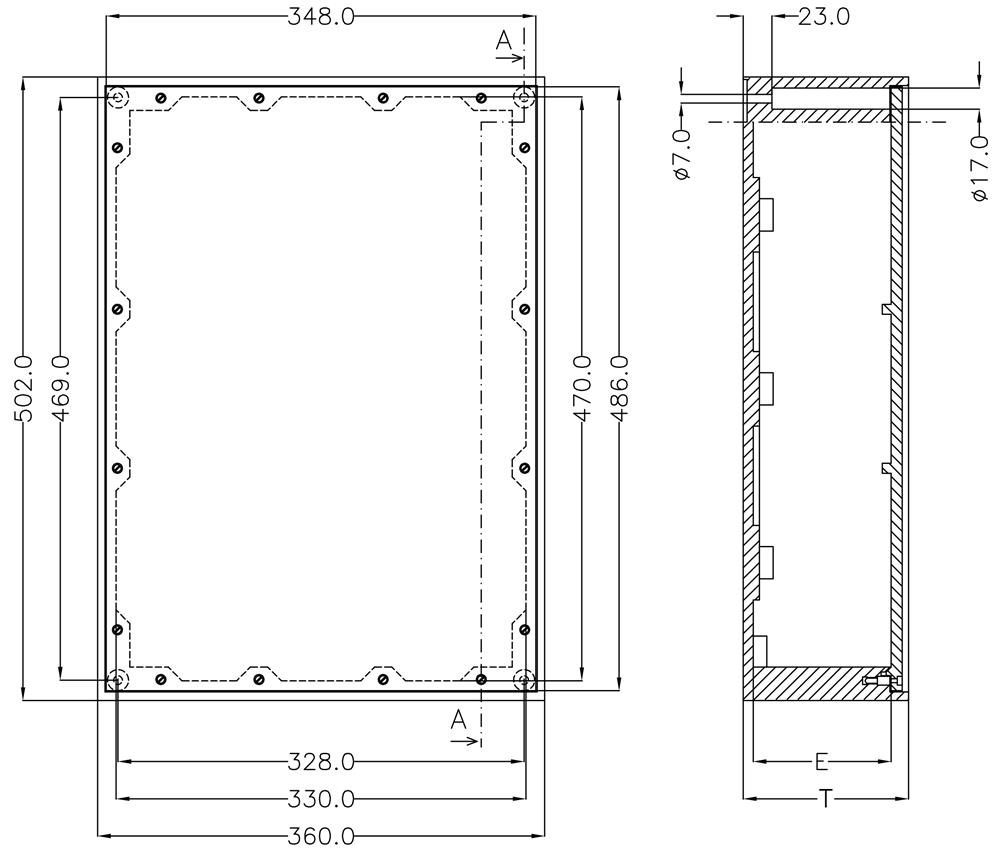

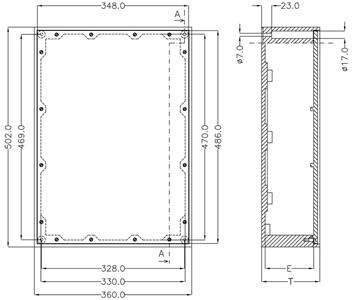

Width x height x depth:
|
360 x 500 x 173 mm
(Dimensions without installations) |
Cabinet:
|
Solid rubber Series 7900
(1 Viewing window with 17 TE) |
Entry:
|
1/cable gland M16
3/cable glands M20
2/cable glands M32 |
Model:
|
1 main power switch 3 pole, black handle
(with maximum use of 3 padlocks)
AC-21A 25A, AC-23A 15kW 400V
1/auxiliary power switch 2 pole black handle
(with maximum use of 3 padlocks)
AC-21A 20A, AC-23A 3.7kW 230V
Power supply earthing in neutral position (0) |
Work sockets:
|
1/Schuko socket 16A 230V
1/CEE-Socket 5x32A 400V
with LS and FI fused sockets |
| Type of protection: |
IP44 (IP65 possible) |
Other operating capacities on request.
Mounting equipment supplied by you can be incorporated into the selected box during production.
Including individual engraving (max. 20 characters).
