Control unit with built-in emergency main switch,
incorporated into a solid rubber box of the series 7900 with door.
|
|
| Technical data |
|

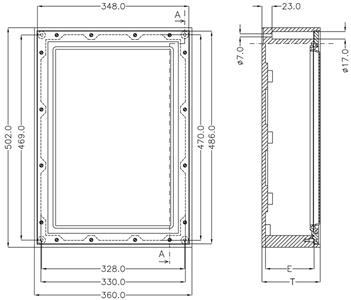

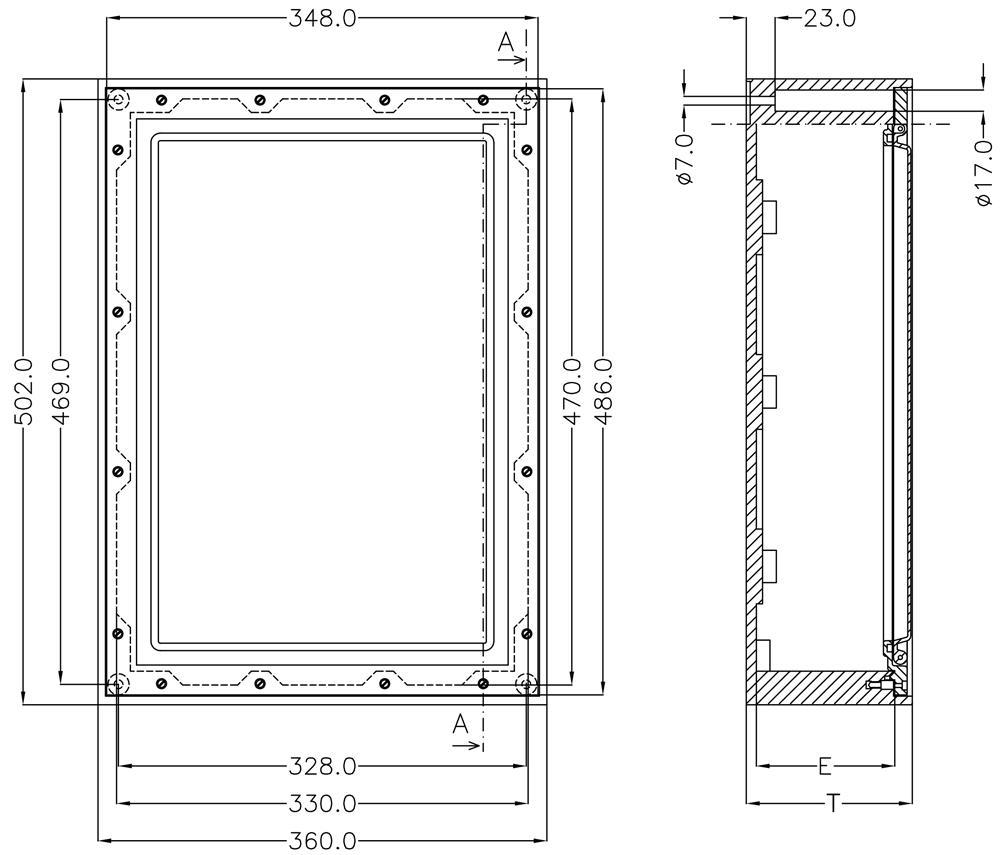

Width x height x depth:
|
360 x 500 x 173 mm
(Dimensions without installations) |
| Cabinet: |
Solid rubber, Series 7900 with door |
Entry:
|
2/cable glands M40
2/cable glands M20 |
Model:
|
1 main power switch 3 pole, yellow / red handle
(with maximum use of 3 padlocks)
AC-21A 100A, AC-23B 37kW 400V
incl. 2 auxiliary pre-mating closing contacts
1/control button: START
1/control button: STOP
Fully wired clamps ready to be connected
The rotating locks and the switch with door clutches
allow easy and quick access to the
internal part of the box for alterations and tests. |
| Type of protection: |
IP54 |
Other operating capacities on request.
Mounting equipment supplied by you can be incorporated into the selected box during production.
Including individual engraving (max. 20 characters).
