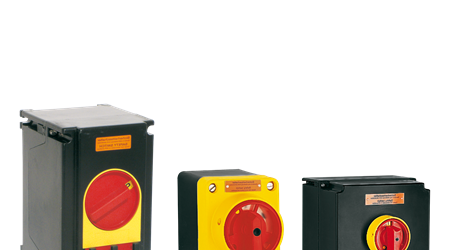

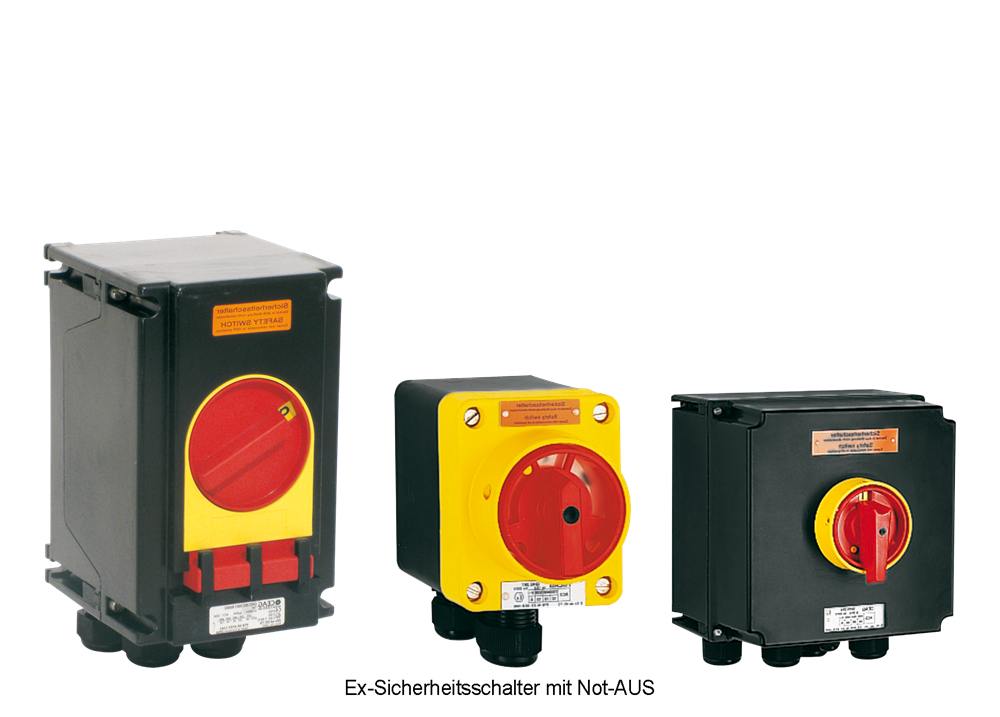

Ex Safety switch
Zone 1 + 2 + 21 + 22
Description
Full AC-3 motor switching capacity
|
|
| General technical data |
|
| Permissible ambient temperature |
-20°C up to 40°C |
| Type of protection to EN 60529 |
IP66 |
| Protection class |
I |
|
|
Technical data 10A (GHG 261)
|
|
Labelling in accordance
with Directive 94/9/EG |
EX II 2 G Ex ed IIC T6
EX II D Ex tD A21 IP66 T80°C |
| EC type examination certificate |
PTB 00 ATEX 1074 |
| Housing Material |
polyamide |
| Rated voltage |
max. 500V, 50/60Hz |
| Rated current |
max. 10A |
Cable entries
|
M20 for Ø 5-13 mm cables
M25 for Ø 8-17 mm cables |
|
|
Technical data 20A (GHG 262)
|
|
Labelling in accordance
with Directive 94/9/EG |
EX II 2 G Ex ed ia IIC T6
EX II 2 D Ex tD A21 IP66 T80°C |
| EC type examination certificate |
PTB 99 ATEX 1161 |
| Housing Material |
Glass fibre reinforced polyester |
| Rated voltage |
max. 690V, 50/60Hz |
| Rated current |
max. 20A |
Cable entries
|
M25 for Ø 8-17 mm cables
M32 for Ø 12-21 mm cables |
|
|
Technical data 40A (GHG 263)
|
|
Labelling in accordance
with Directive 94/9/EG |
EX II 2 G Ex ed ia IIC T6
EX II 2 D Ex tD A21 IP66 T80°C |
| EC type examination certificate |
PTB 99 ATEX 1161 |
| Housing Material |
Glass fibre reinforced polyester |
| Rated voltage |
max. 690V, 50/60Hz |
| Rated current |
max. 40A |
Cable entries
|
M25 for Ø 8-17 mm cables
M40 for Ø 16-28 mm cables |
|
|
Technical data 80A (GHG 264)
|
|
Labelling in accordance
with Directive 94/9/EG |
EX II 2 G Ex ed ia IIC T6
EX II 2 D Ex tD A21 IP66 T80°C |
| EC type examination certificate |
PTB 00 ATEX 1091 |
| Housing Material |
Glass fibre reinforced polyester |
| Rated voltage |
max. 690V, 50/60Hz |
| Rated current |
max. 80A |
Cable entries
|
M25 for Ø 8-17 mm cables
M50 for Ø 21-35 mm cables |
Please make absolutely sure you take note of the operating instructions that accompany the products!
