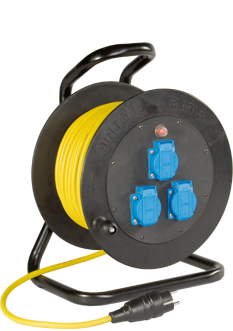

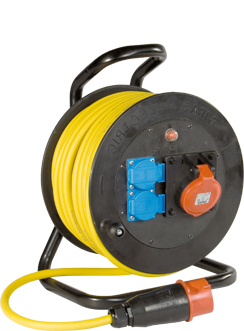

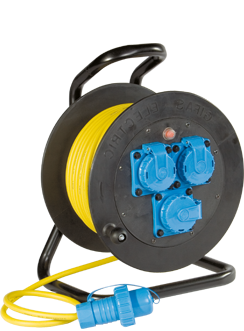

Standard solid rubber cable reels - Series 502 - 230V, 230V/400V with overheating protection.
Technical specifications
- Robust, halogen-free reel body made of vulcanized butyl rubber, fully insulated
- Solid tubular steel frame, powder-coated
- High mechanical strength, UV- and weather-resistant
- Resistant to oils, acids and alkalis
- Maintenance-free, impact-resistant, resistant to ageing
- Integrated brake, which acts directly on the roller-bearing axle, but does not rub against the roller itself
- All sockets can be replaced individually
- With overheating protection as standard
- Weight without cable approx. 4.3 kg
Design the optimum solution for your requirements with our engineers.
Free engraving on roller flange and free printing of the cable with your company name for orders over than 100 m per dimension.
